Accessing Data

Overview

There are multiple datasets that will be of interest when interacting with the pywrdrb, including:

• Pywr-DRB output data ("output") : Results from pywrdrb simulations (e.g., streamflow at model nodes, reservoir storage, flow targets, etc.)

• Observation data ("obs") : Measured USGS gauge streamflow and reservoir storage timeseries

• Hydrologic Model Data ("nhmv10", "nwmv21"): Outputs from external hydrologic models like NWMv2.1 or NHMv1.0.

The pywrdrb.Data class is designed to provide easy methods for loading and accessing all of the datatypes.

pywrdrb.Data() Functionality

Arguments

The keyword arguments are:

• output_dir (str): Directory for output files.

• input_dir (str): Directory for input files.

• datatypes (list): List of data types to load. Options: ‘output’, ‘obs’, ‘nhmv10’, ‘nwmv21’ (default []).

• results_sets (list): List of results sets to load (default [])

• output_filenames (list): List of pywrdrb output filenames with path to load. Only necessary when output is in datatypes (default None).

• units (str): Units for the results. (default ‘MG’).

• print_status (bool): Whether to print status updates during load (default False).

Keyword arguments can be provided during either the initialization or the load methods. I.e.,

data = pywrdrb.Data(**kwargs)
data.load()

or:

data = pywrdrb.Data()
data.load(**kwargs)

A note on results_sets…

The results_set options are used to specify what type of variables you are interested in. For example, if you want to access the streamflow at major Pywr-DRB model nodes, then you want results_sets = ['major_flow']. Another example is results_sets = ["res_storage"] which returns reservoir storage timeseries.

You can find descriptions of each results_set type in pywrdrb.utils.results_sets.

Different datatypes have different valid results_set options.

• "output" data can access all results_set options

• "obs" data can only access results_set in ['major_flow', 'reservoir_downstream_gage', 'res_storage']

• "nhmv10" and "nwmv21" can only access results_set in ['major_flow', 'reservoir_downstream_gage']

Fortunately, the pywrdrb.Data class will identify valid results_set options for each datatype, and only process those valid options.

Accessing Data

Given that there are multiple datasets of interest, the pywrdrb.Data class uses a hierarchical structure for storing this data within the pywrdrb.Data object.

After using pywrdrb.Data().load(), results are stored in the class as a nested dictionary structure following:

data = pywrdrb.Data()
data.load(**kwargs)

data.results_set[datatype_label][scenario_number] -> pd.DataFrame

A note on the dataset labeling…

In the pywrdrb.Data class, the dataset_label for "output" datatypes is derived from the output filenames. This label serves as a key in the final stored data, allowing users to identify and access results associated with custom pywrdrb simulations or scenarios.

For example, if you run a pywrdrb simulation and store the results in output_file = "<path>/my_simulation.hdf5", then these simulation results can be accessed using:

data = pywrdrb.Data()
data.load(
    datatypes = ['output'],
    output_filenames = [output_file],
    results_sets = ['major_flow']
    )

# Access custom output data
data.major_flow["my_simulation"][0]

# Set path to access pywrdrb
import sys
path_to_pywrdrb = '../'
sys.path.append(path_to_pywrdrb)


from pywrdrb import Data
from pywrdrb.utils.directories import output_dir

# List of datatypes to load
# Options: 'obs', 'output', 'nhmv10', 'nwmv21'
datatypes = ['output', 'obs', 'nhmv10']

# List of pywrdrb output files, with path
# NOTE: This is only necessary if 'output' is in datatypes
output_files = [
    rf"{output_dir}drb_output_nhmv10.hdf5",
]

# List of results sets to load
# See pywrdrb.utils.results_sets for available results sets
results_sets = [
    'major_flow',
    'res_storage'
]

# Initialize Data object and load data
data = Data(print_status=True)

data.load(datatypes=datatypes,
          output_filenames=output_files,
          results_sets=results_sets
          )

# show an example of the major_flow results set for `drb_output_nhmv10` output file
data.major_flow['drb_output_nhmv10'][0].head(2)

Loading output data...
Loading major_flow data from drb_output_nhmv10
Loading res_storage data from drb_output_nhmv10
Loading obs data...
Loading major_flow data from observations
Loading res_storage data from observations
Loading nhmv10 data...
Loading major_flow data from nhmv10

	01417000	01425000	01433500	01436000	01447800	01449800	01463620	01470960	delDRCanal	delLordville	delMontague	delTrenton	outletAssunpink	outletSchuylkill
1983-10-01	245.248604	192.037241	702.126510	216.100859	1296.612713	30.641998	77.324137	981.138761	872.861166	626.737443	1050.155248	804.943656	110.874962	329.747828
1983-10-02	157.896171	150.911779	716.300505	60.483957	1298.492457	32.867673	77.732775	982.026219	1837.957440	514.753462	2386.712148	1772.532316	132.337899	688.332292

# check the datatype keys stored in the data object
list(data.major_flow.keys())

['drb_output_nhmv10', 'obs', 'nhmv10']

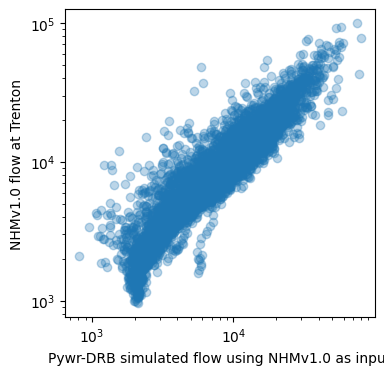

import matplotlib.pyplot as plt

plt.figure(figsize=(4,4))
plt.scatter(data.major_flow['drb_output_nhmv10'][0].loc[:, 'delTrenton'],
            data.major_flow['nhmv10'][0].loc[:, 'delTrenton'], alpha=0.3)
plt.ylabel('NHMv1.0 flow at Trenton')
plt.xlabel('Pywr-DRB simulated flow using NHMv1.0 as input')
plt.yscale('log')
plt.xscale('log')
plt.show()

Exporting custom datasets

Once a pywrdrb.Data object has been loaded and populated with data, then you can export the full contents of the pywrdrb.Data object to a custom HDF5 file. This custom dataset can then be re-loaded later, without having to replicate the original pywrdbr.Data.load() workflow shown above.

The code block below shows how the previously generated data object can be exported and re-loaded.

# Custom dataset filename
custom_datafile = rf"{output_dir}custom_datset.hdf5"

# Export the data object to a custom dataset
data.export(custom_datafile)

# Make a new data object and load the custom dataset
data2 = Data(print_status=True)
data2.load_from_export(custom_datafile)


# Show that the data object contents are the same
data2.major_flow.keys() == data.major_flow.keys()
data2.major_flow['drb_output_nhmv10'][0].equals(data.major_flow['drb_output_nhmv10'][0])

c:\Users\tjame\Desktop\Research\DRB\Pywr-DRB\Pywr-DRB\win_venv\lib\site-packages\tables\path.py:137: NaturalNameWarning: object name is not a valid Python identifier: '0'; it does not match the pattern ``^[a-zA-Z_][a-zA-Z0-9_]*$``; you will not be able to use natural naming to access this object; using ``getattr()`` will still work, though
  check_attribute_name(name)

True

Technical detail (To be completed…)

The pywrdrb.Data class relies on multiple different .

• AbstractDataLoader: The base class defining shared methods for parsing arguments, validating datasets, and handling attributes.

  • Output(AbstractDataLoader): Loads Pywr-DRB simulation results.

  • Observation(AbstractDataLoader): Loads observational data.

  • HydrologicModelFlow(AbstractDataLoader): Loads hydrologic model outputs.

• get_pywrdrb_results(): Handles loading results from simulation output files; used in Output(AbstractDataLoader).

• get_base_results(): Loads observation or hydrologic model data; used in Observation and HydrologicModelFlow classes.

Output Class

The Output class consolidates this entire process into a single load() method, automatically validating inputs, handling scenarios, and storing results inside the Ouput object.

Output.load() uses get_pywrdrb_results() to fetch data for all specified models and results_sets. It manages datetime indexing and scenarios, and then stores the results as attributes within the class.

pywrdrb.post.get_pywrdrb_results()

The get_pywrdrb_results() reads data from Pywr-DRB output files (hdf5) stored in the output directory and returns a dictionary of results along with a datetime index.

This function is designed to handle different result types (results_sets), such as "res_storage", "major_flow", "res_release", and more. This function makes it easy to extract specific variables, but it requires specifying each results_set separately and can be slow when constructing date indexes.

Observation Class

TBC.

HydrologicModelFlow Class

TBC.
